ATI germany straton X led (150w)

Straton X - Uncompromising lighting design reimagined

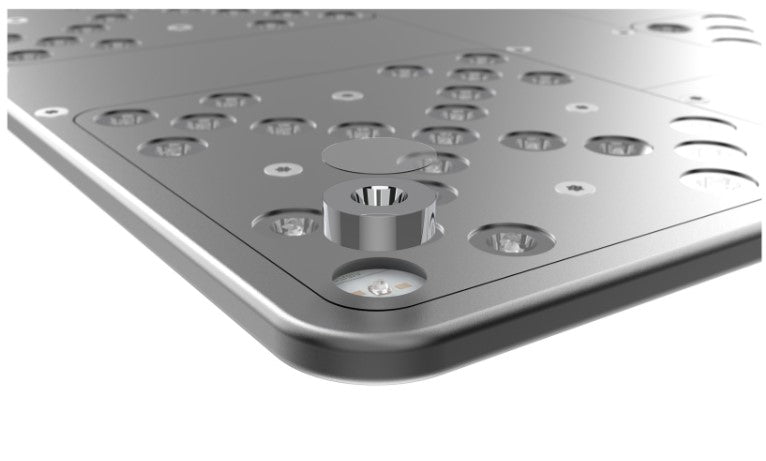

The passively cooled ATI Straton X, only 9mm thin, sets new standards in the field of LED lighting for reef tanks, uncompromisingly combining the implementation of the most efficient technologies and finest materials in one light – completely without fans, completely without noise.

Ultra-slim / Ultra-flat:

With a height of only 9 mm, the Straton X is probably the flattest high-performance LED aquarium light on the market. Even slimmer and lighter than its predecessors, it blends discreetly into any aquarium design.

Noise-free:

Conventional LED lights require fans for cooling – these generate noise, increase the overall height, and are subject to wear and tear. The Straton X completely eliminates this: Modern high-power LEDs and an efficient aluminum heat sink make fans and their maintenance unnecessary – for absolutely silent operation.

Full Aluminum Design:

The Straton X impresses with its precisely manufactured aluminum housing. This not only ensures an elegant appearance but also high stability and durability. At the same time, the aluminum allows for efficient heat dissipation – a crucial advantage for the lifespan and performance of modern LEDs. The Straton X is a true premium product made from high-quality materials,setting new standards in workmanship and design.

Natural Shimmer:

The Straton X impresses with its precisely manufactured aluminum housing. This not only ensures an elegant appearance but also high stability and durability. At the same time, the aluminum allows for efficient heat dissipation – a crucial advantage for the lifespan and performance of modern LEDs. The Straton X is a true premium product made from high-quality materials,setting new standards in workmanship and design.

Soft Shadow Technology:

Even light for healthy corals: Classic LED lights with small, focused light sources often create hot spots – areas with too much light in the center,while areas at the edges are too dimly lit. The Straton X deliberately uses alarge surface area with 100 individual light sources, ensuring even illumination across the entire aquarium. This allows corals to receive light from multiple sides, reducing self-shading and promoting healthy, uniform growth.

Next Level Performance, which is measurable and convincing

Instead of promises, we rely on facts: We have introduced meaningful and practical key performance indicators that clearly demonstrate the performance of the Straton X – ideal for planning the optimal light levels for aquariums and coral farms, or for comparisons with other LED systems on the market. Thanks to integrated PAR and current measurement, the performance values are always transparent and traceable via the app.

Key figures at a glance:

• Absolute Performance - With 1,800 PAR At a distance of 20 cm (8 in), the Straton X delivers light output comparable to direct tropical sunlight. This is made possible by the use of the latest G3 technology, which achieves significantly higher output compared to the previous generation.

• Average area performance: At a practical distance of 60 cm (24 in), the Straton X achieves impressive results on an area of 60×60 cm (24x24 in). 390 PAR on average – and all this with a power consumption of just 150 W.

• Relative Performance: The area coverage results in an excellent relative performance of 2.6 PAR/Watt. This makes the Straton X one of the most efficient LED reef lights in its class.

Illumination area and PAR distribution: The Straton X was designed for particularly broad and even coral illumination and PAR distribution. To illustrate this performance transparently and practically, we have defined two key figures – each measured at a distance of 60 cm (24 in)from the light, ensuring that the central area of the aquarium (approx. 30–40cm (12- 16 in) below the water surface) is also covered.

• SPS 200 area: A PAR value of at least 200 µmol/m2/s is considered necessary for keeping demanding SPS corals – the Straton X achieves this value up to a diameter of 85 cm (34 in), which corresponds to an area of 0.567 m2.

These values impressively demonstrate how efficiently the Straton X, with only150 W maximum power, enables large-area lighting for various aquarium types.

• PAR-to-price ratio:
  A simple wattage comparison in relation to the purchase price is not very informative. What matters is how much usable light is produced per euro invested. Our tests show: The Straton X offers outstanding performance. PAR-to-price ratio and is playing at the very top.

Performance summary: More light. Less consumption.Maximum control. The Straton X produces up to twice as much usable light as many other LED systems at the same power consumption. This means: less energy consumption, lower operating costs, and impressive light output. This saves energy, protects the environment and your wallet, and allows your corals to visibly grow.

Hybrid Reef Spectrum - Reef full spectrum with high blue content:

Conventional LED lights typically rely on daylight or blue light. The Straton X combines both: As a true full-spectrum reef light, it flexibly produces any desired light spectrum – from bright daylight to intense blue light. For maximum efficiency, we use the world's most powerful high-power LEDs– selected across manufacturer boundaries to extract the best performance from each color channel. Compared to previous models, the blue light has been further enhanced to accentuate fluorescent coral colors. At the same time,improved white and cyan white tones provide greater overall brightness and more vibrant, striking coral colors.

UV (405 nm): 8

• Promotes green fluorescent pigments

Violet (420 nm): 8

• Promotes green fluorescent pigments
• Additionally offers photosynthetic
  usable radiation

Royal Blue (450 nm): 20

• Promotes especially green and red
  fluorescent pigments
• High photosynthetically usable
  radiation

Blue (470 nm): 28

• Especially promotes red, orange and yellow
• Fluorescent pigments
• Highest photosynthetically usable
  Radiation increases color diversity and
  growth

Cyan White: 16

• Promotes striking pigments
  (Pocilloporins) in many PLCs
• Natural spectrum

White: 16

• Promotes striking pigments
  (Pocilloporins) in many PLCs
• Natural brightness

Red (625 nm): 4

• Enhances red tones and contrasts

Sum : 100

• ·       Perfectly tuned full spectrum Set up

ATI Reef Pilot APP – Navigate Your Reefc

Intelligent control and full control: The Straton X can be conveniently controlled via smartphone – with the new ATI Reef Pilot App for iOS and Android.

• Easily program individual light gradients and spectra.
• Smooth transitions & precise intensity control
• Adopt settings from leading coral farmers (templates)
• Individual or group control of all lights
• LIVE ENERGY: Monitor electricity consumption in real time
• LIVE PAR: Display PAR values live at different water depths

Made in Germany – Precision born of passion

Made in Germany by Reef Enthusiasts: For over 25years, ATI has stood for innovative aquarium lighting technology. With the Straton X, we consistently rely on German precision: from milling to circuit board assembly – every light is manufactured entirely in Germany. Milled from solid material and manufactured to the highest standards – this is how we guarantee maximum quality and durability Made in Germany.

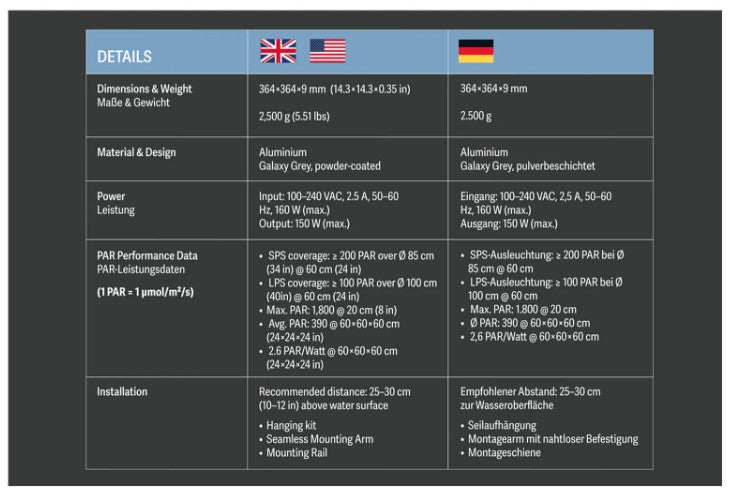

Dimensions & Weight:

Dimensions: 364 × 364 × 9 mm (14.3 × 14.3 × 0.35 in)
Weight: 2,500 g

Material & Design:

Material: Aluminum
Color: Galaxy Grey, powder-coated
Design: Ultra-thin, fanless

Power supply:

Input: 100–240 VAC, 2.5 A, 50–60 Hz, 160 W (max.)
Output: 150 W (max.)

PAR performance data (1 PAR = 1 µmol/m²/s):

    SPS illumination: min. 200PAR on Ø 85 cm (0.567 m²) @ 60 cm

    LPS Illumination: min. 100PAR on Ø 100 cm (0.785 m²) @ 60 cm

    Max. PAR: 1,800 @ 20 cm

    Ø PAR: 390 @ 60x60x60 cm

    2.6 PAR/Watt @ 60x60x60 cm

    Good PAR-to-price ratio

LED configuration:

• 100 High Power LEDs
• 100 individual reflectors
• 7 different LEDs

Installation:

Recommended distance: 25–30 cm from the water surface

Mounting options:

• rope suspension
• Mounting arm with seamless attachment
• Mounting rail

Steering:

• Via ATI Pilot App
• LIVE PAR display
• LIVE Energy Monitoring
